WPC Decking Extrusion Line
The WPC Decking Extrusion Line is designed for producing WPC decking, panels, door and window profiles and other wood-plastic composite products. The complete line integrates a conical twin-screw extruder, customized die mould, vacuum calibration table, cutting machine and stacker, providing stable extrusion, precise profile shaping and efficient production. For the standard configuration, the line uses an SJSZ65/138 conical twin-screw extruder with a 45 kW motor, with a typical output of 150–250 kg/h.
- Specifications
- Model65/138
- Extruder Motor45KW
- Capacity150-350 kg/h
- Extrusion Line Length25m
Application

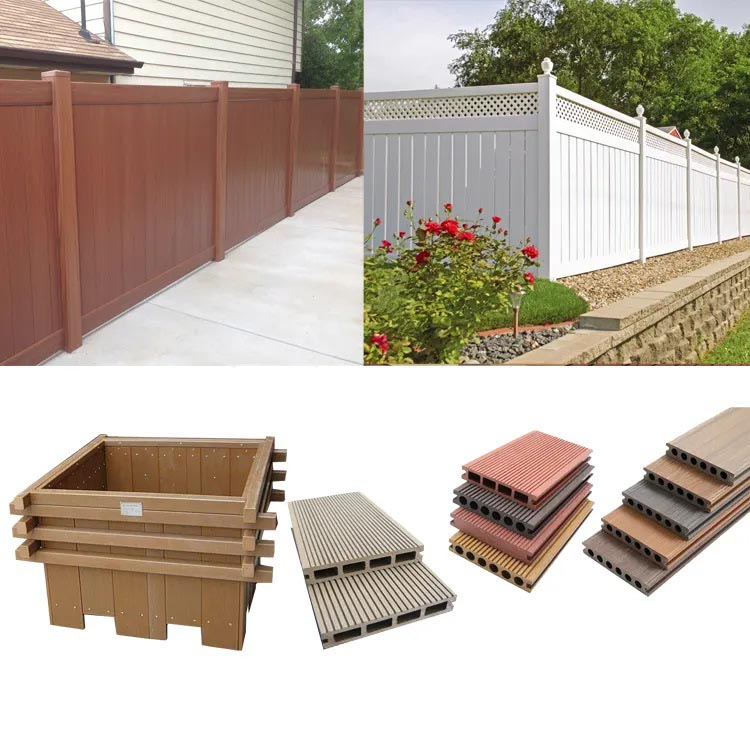

WPC Decking
WPC decking is widely used for outdoor terraces, balconies, gardens, walkways and commercial spaces. Its resistance to moisture, insects and weathering makes it a durable alternative to traditional wood decking.
WPC Wall Cladding
WPC cladding can be used for exterior and interior wall decoration. It provides a wood-like appearance while offering good moisture resistance and low maintenance requirements.
WPC Fencing
WPC fencing profiles are suitable for residential, commercial and landscaping applications, providing a durable and low-maintenance alternative to conventional wood fencing.
WPC Door & Window Profiles
The extrusion line can produce various WPC door and window profiles according to customized die designs and product requirements.
Other WPC Profiles
With customized moulds, the line can also produce WPC skirting, decorative profiles, railing components and other wood-plastic composite profiles.
Specifications
Production Process:
Features of the WPC Panel Making Machine:
Equipment List:
|
Specification of Equipment List
|
||||
|
NAME
|
Quantity/Set
|
Description
|
Remarks
|
|
|
Auto Loader
|
1
|
Spiral loader
|
||
|
Automatic feeding machine
|
1
|
With twin screw to feed evenly
|
||
|
Extruder SJSZ-51/105 or 65/132
|
1
|
18.5/22/37 KW for choice
|
||
|
Moulds
|
1
|
Moulds shape can be designed
|
||
|
Calibration Table
|
1
|
Moulds shape can be designed
|
||
|
Cut Machine
|
1
|
Cut to the specified length
|
||
Conical twin Screw extruder techinical parameters:
|
Model
|
SJSZ51/105
|
SJSZ55/120
|
SJSZ65/132
|
SJSZ80/156
|
|
Power(kW)
|
18.5
|
22
|
37
|
55
|
|
Screw Diameter(mm)
|
∅51/∅105
|
∅55/∅120
|
∅65/∅132
|
∅80/∅156
|
|
Rotational Speed
|
36
|
36
|
36
|
36
|
|
Output(kg/h)
|
50
|
80
|
150
|
350
|
Mold:
 |
 |
Features
Detail Information
1. Automatic Feeding System
The automatic feeding system continuously supplies the WPC raw material to the extruder, helping maintain stable and consistent material feeding during production.
2. Conical Twin-Screw Extruder
The conical twin-screw extruder is designed for efficient mixing, plasticization and extrusion of wood-plastic composite materials. The high-efficiency screw and barrel provide stable material conveying and uniform plasticization.
The extruder is equipped with a hardened gearbox with a self-lubricating system. A Siemens standard motor and Siemens inverter can be configured for reliable drive performance and precise speed control. Siemens PLC control or conventional button control is available according to customer requirements.
3. Die Mould
The die mould is customized according to the cross-sectional shape and dimensions of the WPC decking or profile.
An optimized flow channel helps achieve uniform melt distribution and stable extrusion. The heating and temperature control system provides precise control of the melt temperature, helping improve product dimensional consistency and surface quality.

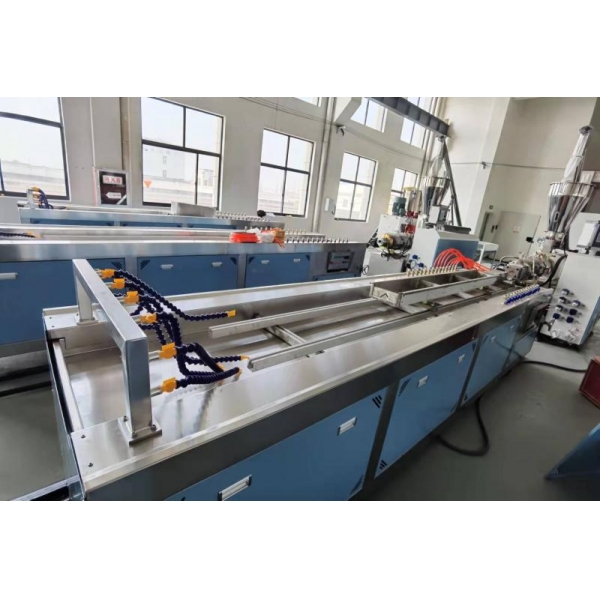

4. Vacuum Calibration Table
The vacuum calibration table is used to shape and cool the extruded WPC profile immediately after the die.
The calibration table is manufactured from 304 stainless steel for good corrosion resistance and durability. A stable vacuum system helps maintain the required profile dimensions, while the circulating cooling water provides efficient and uniform cooling.
The calibration tooling can be customized according to different WPC profile designs.
5. Cutting Machine
The cutting machine cuts the continuously extruded WPC profile to the required length.
The cutting system is designed for accurate and clean cutting with low operating noise. A dust and scrap collection system can be configured according to the product and production requirements.
6. Stacker
The automatic or semi-automatic stacker collects and supports the finished WPC profiles after cutting, making the production process more convenient and organized.
|
Maximum shape range(mm) |
Forming table length(mm) |
Number of fans |
Vacuum pump power (kw) |
Water Pump power (KW) |
|
100 |
4000 |
1 |
1*3 |
1*2.2 |
|
150 |
4000 |
1 |
2*5.5 |
1*4 |
|
200 |
5000 |
2 |
2*5.5 |
1*4 |
|
400 |
6000 |
2 |
2*5.5 |
1*4 |
|
600 |
6000 |
2 |
3*5.5 |
1*4 |
FAQ
WPC Decking Extrusion Line FAQ
Q: What materials can be used for WPC decking production?
A: WPC decking is typically produced using a mixture of wood fiber or wood powder, thermoplastic materials such as PP or PE, and additives. The exact material formulation depends on the product design, required properties and production process.
Q: What WPC products can this extrusion line produce?
A: The WPC extrusion line can produce WPC decking, wall cladding, fencing, door and window profiles, skirting and other customized WPC profiles. Different products require different die moulds and calibration tooling.
Q: Can the die mould be customized for my WPC profile?
A: Yes. The die mould and calibration tooling can be customized according to your WPC profile design, dimensions and cross-sectional shape. You can provide us with a product drawing or sample for evaluation.
Q: What is the production capacity of the WPC decking extrusion line?
A: The standard WPC decking extrusion line with an SJSZ65/138 conical twin-screw extruder has a typical capacity of 150–250 kg/h. The actual output depends on the raw material formulation, product dimensions, profile design and production conditions.
Q: Can you provide a complete WPC production line?
A: Yes. We can provide a complete WPC extrusion solution including the feeding system, conical twin-screw extruder, customized die mould, vacuum calibration table, haul-off unit, cutting machine and stacker. We can also provide technical support for line installation and commissioning.
