HDPE Pipe Production Line

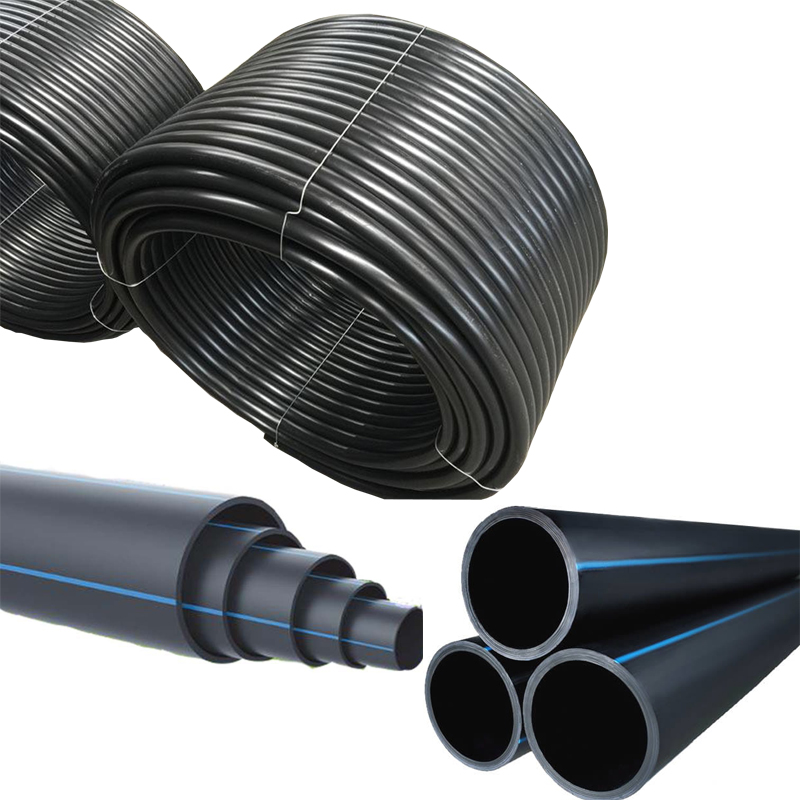

It is mainly used for the production of agricultural water supply and drainage, building water supply and drainage, cable laying,etc. and plastic PVC pipes of various pipe diameters and wall thicknesses. The unit consists of a conical (parallel) twin-screw extruder, a vacuum setting table, a tractor, a cutting machine, a stacking rack, etc. and all of them are high-quality products.The tractor has two-claw, three-claw, four-claw, six-claw, eight-claw and other traction types.

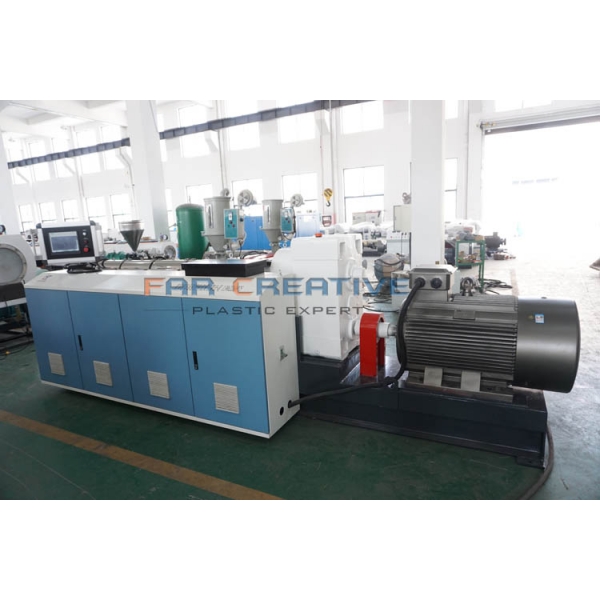

1.Single Screw Extruder
The HDPE pipe extrusion line adopts a high-efficiency screw and barrel, a grooved feeding section and a powerful water-jacket cooling system, providing high extrusion capacity and stable material conveying. The extruder is equipped with a hardened gearbox with a self-lubricating system, a Siemens standard motor and an ABB inverter for precise speed control. The control system can be configured with Siemens PLC control or conventional button control according to customer requirements.

2.Die Head
The HDPE pipe die head features an optimized flow channel design to ensure uniform melt distribution and stable, high-capacity extrusion. The optimized heating and flow channel system provides precise melt temperature control and helps achieve consistent pipe wall thickness and surface quality.

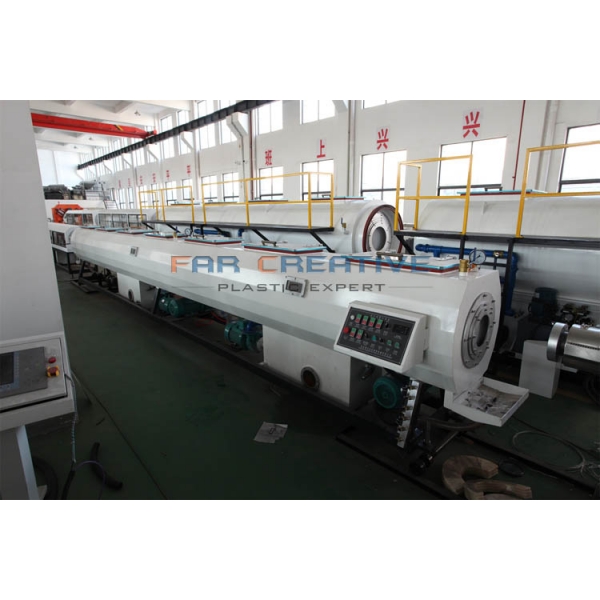

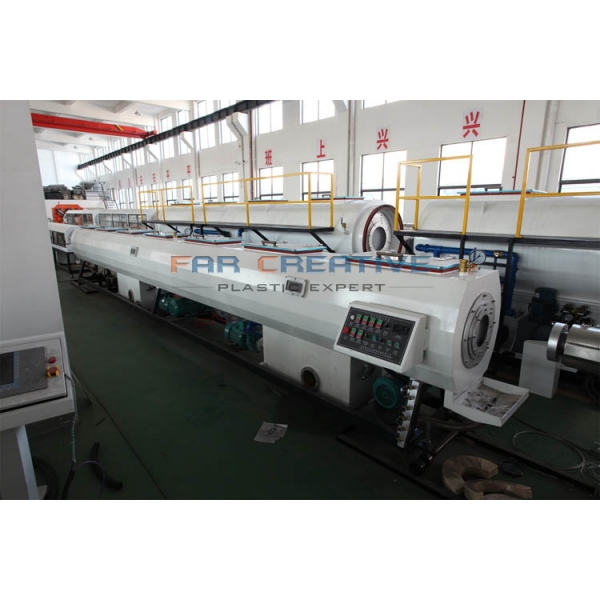

3.Vacuum calibration tank
The vacuum calibration tank features a two-chamber structure integrating vacuum sizing and initial cooling. Both the vacuum tank and cooling spray tanks are made of high-quality 304 stainless steel for durability and corrosion resistance. A stable vacuum system ensures precise pipe sizing, while the automatic water temperature control system provides reliable and intelligent cooling performance.

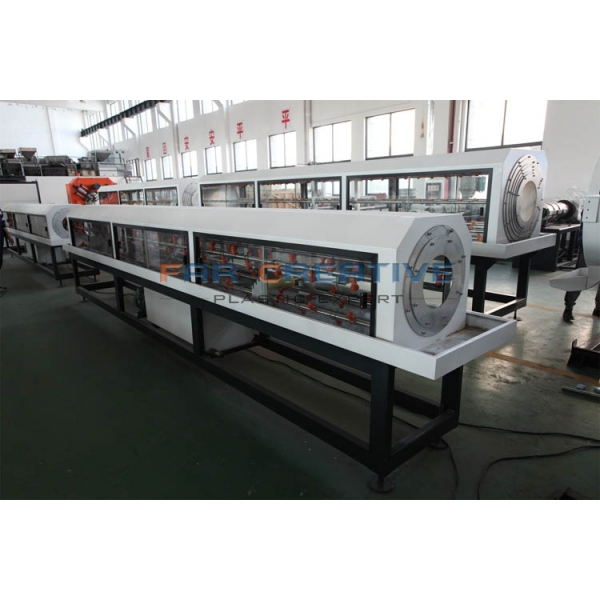

4.Cooling Spray Tank
The cooling spray tank is designed for efficient and uniform cooling of HDPE pipes after vacuum calibration. Multiple spray nozzles provide continuous and evenly distributed cooling water around the pipe, helping maintain stable pipe dimensions and improving cooling efficiency. The tank is made of 304 stainless steel and can be configured with automatic water temperature control according to production requirements.

5.Haul-off Unit
Far Creative offers different haul-off configurations to match various pipe sizes and production speeds. Depending on the application, the haul-off can be equipped with a single motor drive or independent motor drives for each caterpillar, providing stable and precise pipe pulling. Belt-type haul-off units are also available for specific pipe applications. For large diameter HDPE pipes, a pipe winch device can be added to reduce material waste during production.

6.Cuttter
The HDPE pipe cutter features a high-speed and precise cutting system for clean and accurate pipe cutting with low operating noise. A powerful scrap suction system collects cutting waste efficiently, helping keep the production area clean and reducing maintenance requirements.

Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 11 years.

Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
